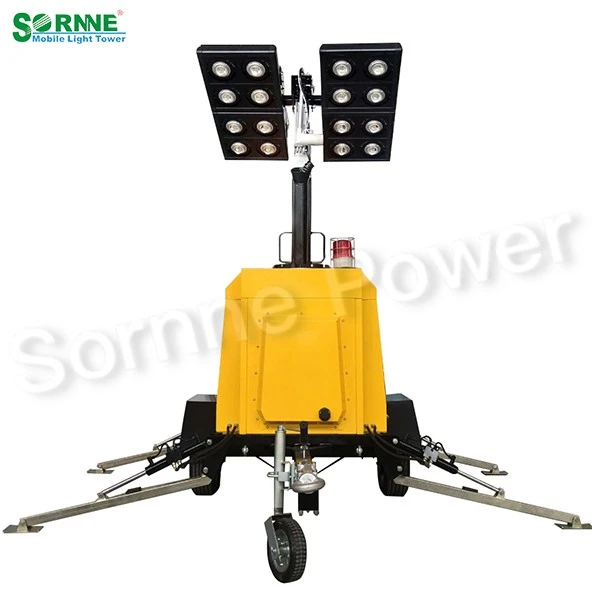

Light Tower Equipment
Production Description:
1.Employ mine regulatory standards in the production process to ensure that the body, space frame, mast and walking device meet the mine operating conditions.
2.The mast rotated 360 degrees horizontally. Lamp can be 0-90° electric adjustment. Under the condition that the vehicle is fixed by five outriggers, the lamp can illuminate any area within 200 meters.
3.High-performance hand lift guarantees the mast stability and rise and fall rapidly. Wind resistance force 8.
4.Equipped with silent high power diesel generator, instantly light up 4x1000W metal halide lamps. High Illumination intensity and long service life.
5.The Lamp housing is made of cast aluminum and solid structure, smaller in volume and beautiful in outline, lifetime free of replacement.
6.The whole machine adopts electrostatic spraying, good corrosion resistance.
7.The walking unit equipped with rubber torsion bar shaft and off-road tires are capable of fast moving long distance with trailer. Brake warning lights installed in the trailer.
8.Digital central control panel enable each functional switches be operated independently. The compact internal structure makes maintenance very easy.
| model | Mo-806 | Mo-520 | Mo-5658 | Mo-5658L |
| Dimension(L*W*H)mm | 2836*1350*2480 | 2950*1350*2950 | 3195*1150*2150 | |
| Mast Height | 9M | 10M | 9M | |
| Mast | Hydraulic Type | Manual Operation By Winch | ||
| Weight(Net) | 1140kg | 1150kg | 840kg | 780kg |
| Engine | Perkings | Kubota | Kubota | |
| Engine Model | 403D-11G | D1105 | D905 | |
| Prime power(kw) | 8.4/10.3 | 8.4/10.4 | 6.6 | 7.8 |
| Oil Capability | 4.9L | 5.1L | 5.1L | |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | |
| Type of lights | Metal Halide Lamp | Metal Halide Lamp | LED | |
| Number Power of Lights | 4*1000W | 4*1000W | 4*200W | |
| Luminous Flux | 4*99000LM | 4*99000LM | 4*22000LM | |
| Color Temperature | 4000K | 4000K | 5000K |
|
Mast |
Mechanical |
|
Mast Height |
9 |
|
Section |
4 |
|
Beam Angle |
0~90° |
|
Wind Resistance |
Force 8 (75km/h) |
|
Mast Tilt Angle |
10° |
|
Mast Rotation Angle |
360° |
|
Lamp Type |
Metal Halide |
|
Power |
4*1000W |
|
Luminous Flux |
4*110000LM |
|
Frequency |
50Hz/60Hz |
|
Lifetime |
1000h |
|
Temperature |
85℃ |
|
IP Grade |
IP65 |
|
Engine Mode |
KIPUVI S3500T |
|
Fuel |
Diesel 0# |
|
Rated Power |
50Hz 6.5kw |
|
Voltage |
220 |
|
Speed |
50Hz 3000rpm |
|
Acoustic Pressure |
≤70db |
|
Excitation Mode |
Electric |
|
Cylinder Block |
2 |
|
Cooling Mode |
Air |
|
Fuel Tank |
25L |
|
Fuel Consumption |
1.65L/h |
|
Up-time |
13.5h |
|
Power Outlet Sockets |
2 |
|
Driving Mode |
Trailer |
|
Anti-toppling Support |
Outrigger |
|
Tyre Rim |
185/70 R14 |
|
Brake |
Manual |
|
Tow Hitch |
Ball type/O ring |
|
Walking Speed |
<80km/h |
|
Measurement |
2860*1450*2150 |
|
Weight |
860kgs |
|
Container Load for 40 HQ |
8sets |
