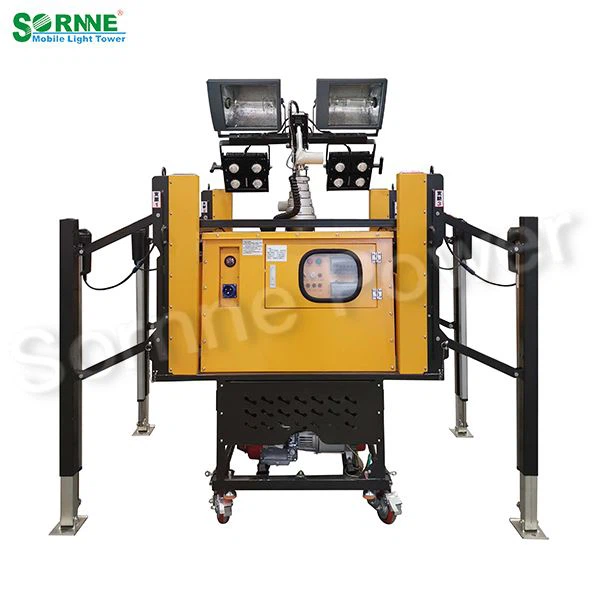

Auto Loading and Unloading Mobile Lighting Cabin
Main performance
Easy loading operation , no need forks .crane , win the time for rescue and relief work
Self-loading and electricity generate , intelligent control , simple to use , one people can finished , saving the labor and cost
Expanded the fuel tank , ensuring the long time working condition.
Product features
◆Lamp consist of two imported 350w led light and two 1000w gas discharge lamp(metal halid light +high pressure sodium light). you can choose one set of light resource working , and also you can control lamp cap 0-135°rotation , Multi-angle wide range lighting( noted with led light can be instant light up, no need preheat,can be emergency lighting , metal halid light high brightness , long irradiation distance, HPSL Strong penetration , can be use in rainy and foggy environment .
◆Both side of light tower configure with 28w led light , can offers lighting and safty instruction for the short distance operation
◆Four loading outrigger can be electrical folding and expanding operate by one botton,saving the labor
◆Use four outriggers ,configure the top with warning strobe light , ensuring the passing vehicles and worker safty
◆Visual electronic fuel meter , can track the fuel tank volume ,to avoid axcessive use , reduce the lifetime of generator set
◆Light mast adjusted the height with 6 section telescopic cylinder ,highest height up to 7M, turn the mast left and right can be adjusted the illumination angle , light irradiation diameter covers 200M
◆Configurate with 4pcs high strenth nylon casters ,flip down pushed to move .
◆Imported the branded generator set , increase the electrical power rate, stable performance and simple operation.
◆The whole frame configure with high quality metal,compact structure ,stable performance ,ensuring the normal working in the extrame environment, waterproof and wind resistance rating is Grade-8
|
|
|
Main parameter |
|
|
Self-loading module |
Suitable vehicles |
Electricity repair pick-up or miniwan |
|
|
Outrigger loading mode |
Electric |
||
|
Outrigger expand mode |
Electric |
||
|
Loading time |
≤180s |
||
|
Max expandable width |
2.1m |
||
|
Max distance from the ground |
1.1m |
||
|
Operate contyrol mode |
Integrated panel control |
||
|
Lighting module |
Lighting systerm |
1000w metal halid light, 2sets 350w led light |
|
|
Luminaire protection class ip65 |
|||
|
Irradiation area 45degree |
|||
|
Light pole lifting mode, lifting height >7m |
|||
|
Electrical lamp cap rotation mode,vertical turnover angle >0-135° |
|||
|
320000lm light camp luminous flux 320000lm |
|||
|
Auxiliary lighting |
Led light, each lamp power>28w,light quantity >2unit. Equipped with glare-free accessories , light protection level : Ip65 |
||
|
Light tower equipped with led warning light |
|||
|
Engine |
Engine brand |
Honda |
|
|
Generator related output voltage |
220v |
||
|
Generator output power |
5.0-5.5kw |
||
|
Starting mode |
Electric + manual |
||
|
Fuel type |
Gasoline |
||
|
Fuel tank volume |
≥50l |
||
|
一working time( full tank fuel) |
≥28h |
||
|
Oil meter |
Pointer type |
||
|
Air compressor |
No need maintenance |
||
|
Storage cabinet |
Reserve large space for storage |
||
|
Amplification function |
Configurate with amplifier, power amplifier power >120w,loudspeaker power >80w |
||
|
Output 5 poles sockets |
≥4个 |
||
|
Moving caster |
Equipped with integrated folding universal wheel |
||
|
Others |
Grounding device |
25 saquare trannsparents copper core wire , ground rod length not lower than 80cm. |
|
|
Nylon cushion gasket |
Tower light and vehiclke cargo box connect surface need nylon cushion gasket Nylon cushion gasket and light tower need integrated design |
||
|
Light tower size |
＜1600mm*1400mm*2100mm |
||
|
Light tower weight |
≤680kg |
||
